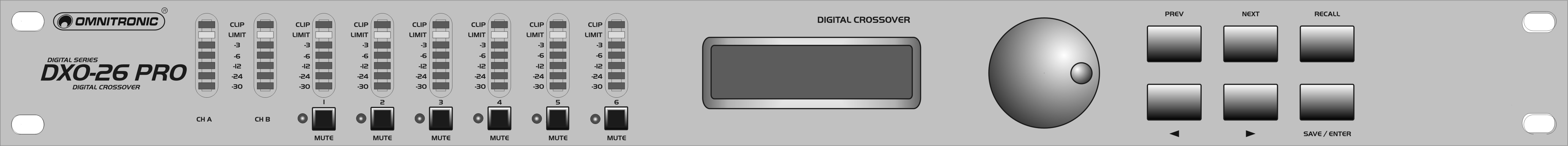

Digital stereo active crossover incl. PC software

• 2 analog inputs and 6 analog outputs (servo-balanced XLR connectors)
• Active frequency filter with slopes up to 48 dB/octave split up the audio signal into different frequency bands
• MIDI interface
• Rs232 interface, compatible to PCs
• Incl. software editor for remote control via PC: store, transfer, and manage your presets
• 60 user programs can be memorized internally or via PC software
• Both inputs or a sum of both can be split up into a maximum of 6 frequency bands
• Up to 38 frequency bands for fine-tuning the frequency range adjustable
• Up to 635.417 ms total delay for the inputs and outputs adustable
• Delay displayed in milliseconds, meters, feet and frame/second
• Output limiter with ajustable limits and automatic attack and release settings as overload protection for your amplifying system
• Lock function for protecting the program settings
• Phase Invert switch per output
• Switch-mode power supply
• Rack installation, 1 U
