Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	30.00 W
Dimensions:	Width: 48.3 cm Depth: 22.3 cm Height: 4.45 cm
Weight:	2.25 kg
Inputs:	2 x XLR, active, balanced with automatic correction for unbalanced loading
Gain range:	±15 dB
Input impedance:	10 kohms
Frequency range:	15-20000 Hz, ±0.25 dB
	15-40000 Hz, ±3 dB
Outputs:	6 x XLR, active, balanced
Output impedance:	<50 mohms (electronically balanced)
Output gain range:	±21 dB
Maximum output level:	+20 dBu
Frequency range:	15-20000 Hz, ±0.25 dB
	15-40000 Hz, ±3 dB
Distorsion:	0,005 %, 20-20000 Hz
S/N ratio:	112 dB (22-22000 Hz)
Channel separation:	80 dB (30-20000 Hz)
Filter:
Slopes:	6, 12, 18, 24 or 48 dB/octave
Type:	Bessel, Butterworth or Linkwitz-Riley
Crossover frequency:	15-20000 Hz
Delay:	0~7 ms
Dimensions (WxHxD):	482 x 44 x 223 mm

Packaging units

PU	EAN	Weight	Dimensions
1	4026397177763	2,75 kg	52cm x 25cm x 0cm
10	4026397179316	28,95 kg	53cm x 53cm x 44cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Illustration

Name	Version	Language

Software

Name	Version	Language
10356340-SW-47475-1.4000-Software-+-USB-Treiber-de_en_es_fr.zip (3 MB)	1.4000	de_en_es_fr
10356340-SW-161651-4.0100-Mac-OSX-de.zip (130 MB)	4.0100	de

All images

Name	Version	Language
10356340-Images-.zip

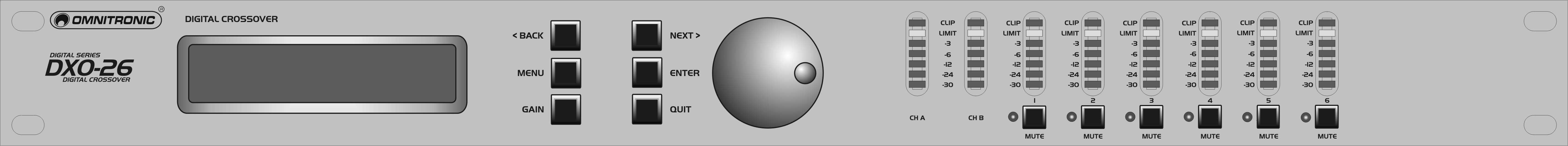

OMNITRONIC DXO-26 Digital crossover

The article is no longer in our assortment.

No. 10356340

Digital stereo active crossover incl. PC software

2 analog inputs and 6 analog outputs (servo-balanced XLR connectors)
Active frequency filter with slopes up to 48 dB/octave split up the audio-signal into different frequency bands
Rs232 interface, compatible to PCs
Incl. software editor for remote control via PC: store, transfer, and manage your presets
5 basic configurations
5-band parametric EQ per output
Up to 7 ms signal delay for the outputs adjustable
Delay displayed in milliseconds, meters, feet and frame/second
Output limiter with ajustable limits and automatic attack and release settings as overload protection for your amplifying system
Lock function for protecting the program settings
Phase Invert switch per output
Switch-mode power supply
Rack installation, 1 U
