OMNITRONIC XPA series

Reliable Amplifiers at a Fair Price

Whether for permanent installations in bars and clubs or mobile sound reinforcement applications, the XPA series from OMNITRONIC offers powerful PA amplifiers at an attractive price. Two two-channel models with Class AB technology and one four-channel power amplifier with Class D technology cover a range of power requirements. All three models can be installed in a 19-inch rack and occupy two rack units.

Safe Operation

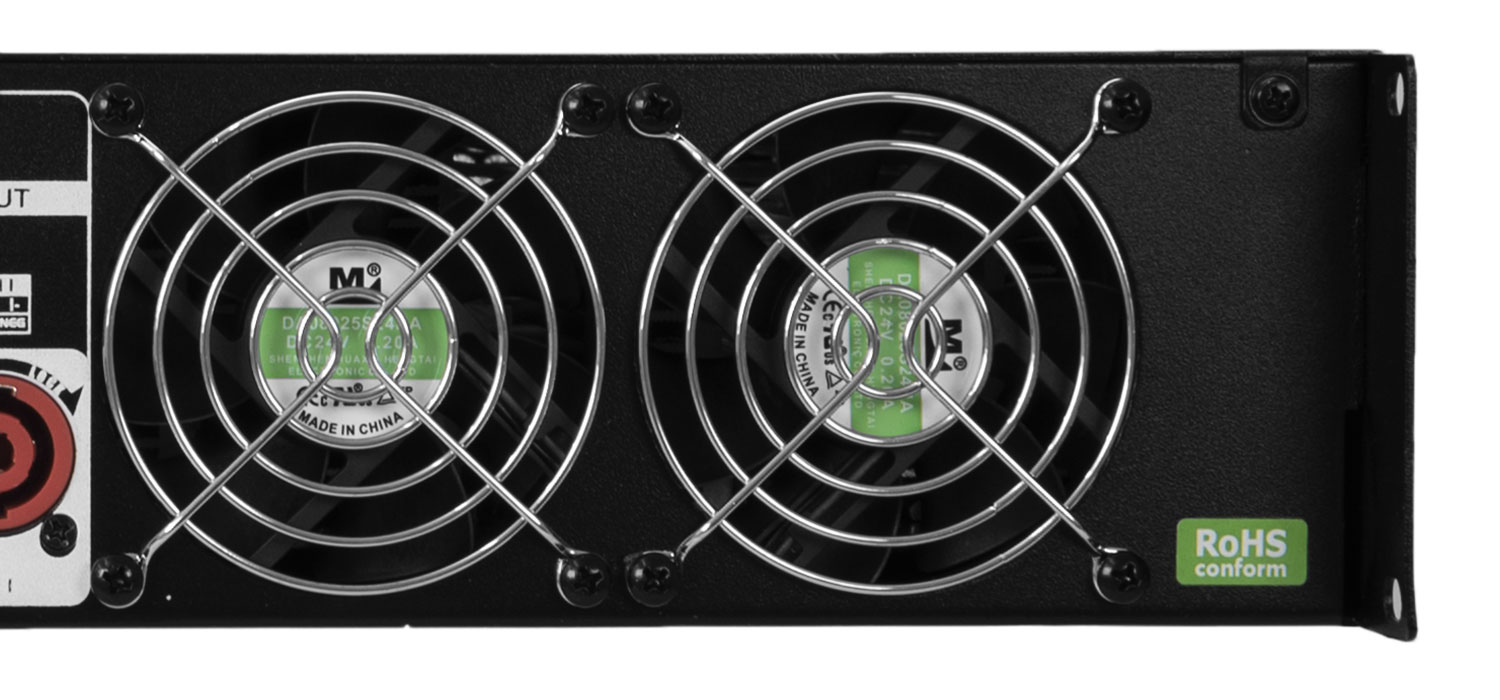

Integrated limiters and protection circuits against short circuits, overheating and DC voltage help ensure reliable operation. Fans dissipate heat with airflow from front to back. On the two two-channel models, fan speed is controlled according to temperature.

Individual level controls for each channel allow the volume to be adjusted independently. LEDs for Power, Signal, Clip and Protect indicate the operating status. Stereo, parallel and bridged modes are available depending on the application.

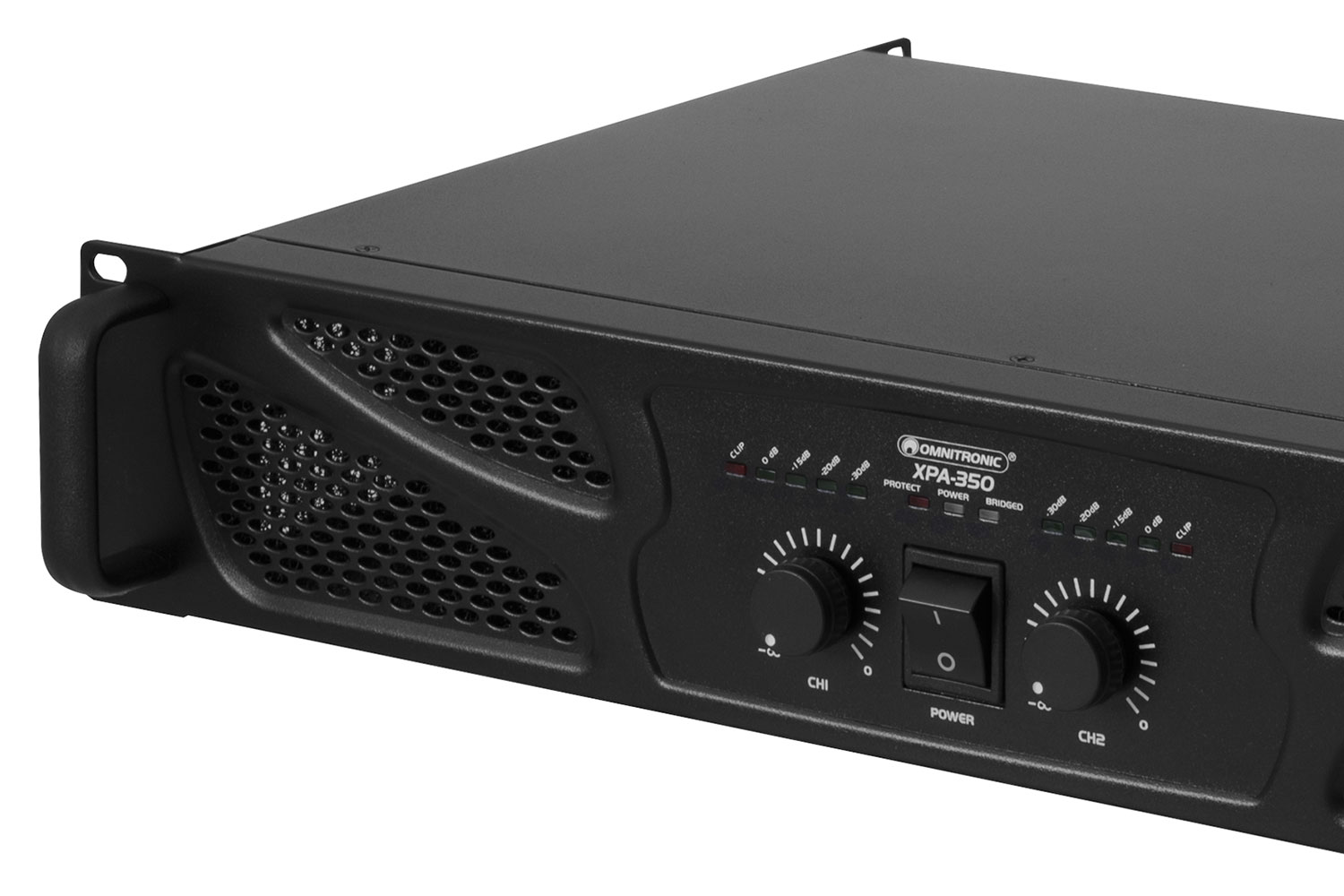

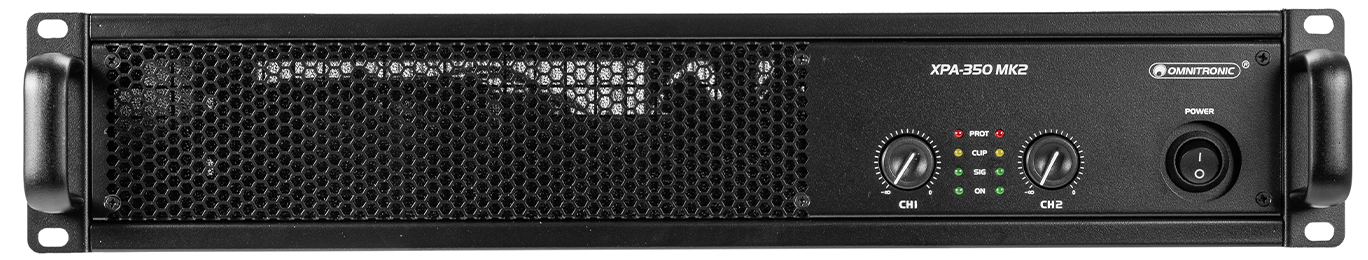

Two Channels: XPA-350 MK2 and XPA-1000 MK2

The two Class AB power amplifiers provide the right output for different sound reinforcement applications: The XPA-350 MK2 delivers 2 × 175 watts RMS at 4 ohms, while the XPA-1000 MK2 provides 2 × 500 watts RMS at 4 ohms.

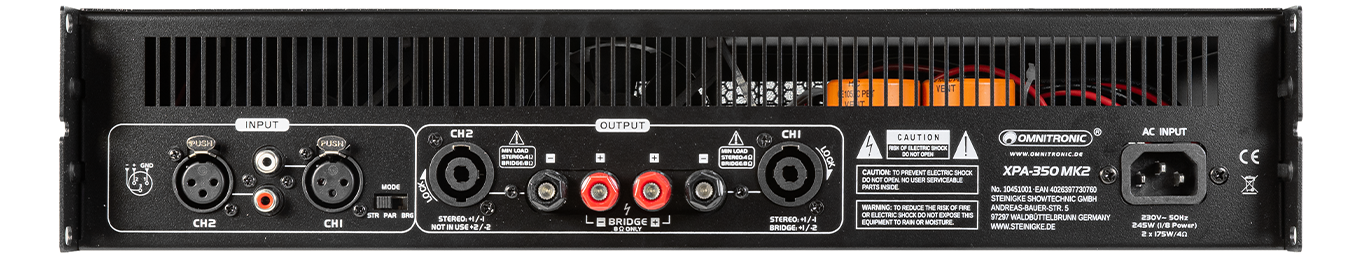

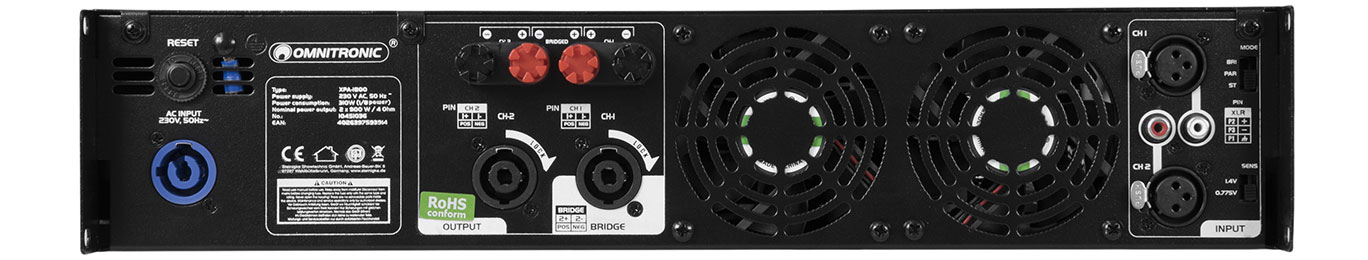

XLR and RCA inputs are available for connecting signal sources. Speakers are connected via locking speaker connectors or screw terminals.

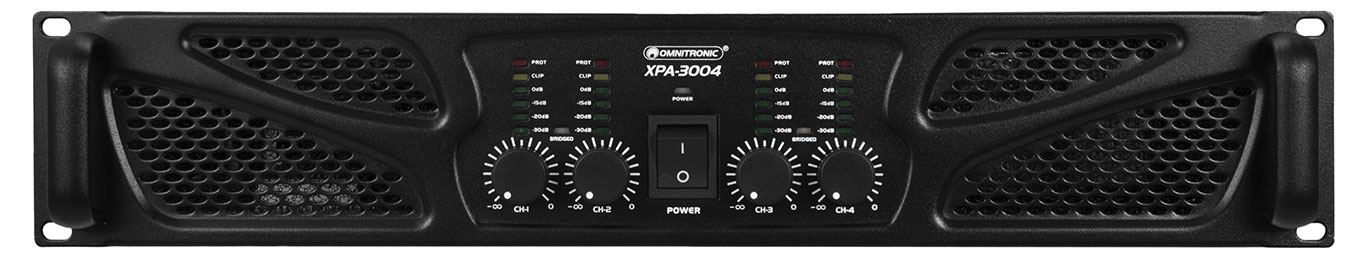

Four Channels: XPA-4804 MK2

The XPA-4804 MK2 combines four amplifier channels with Class D technology and delivers 4 × 1200 watts RMS at 4 ohms. This makes it suitable for sound reinforcement setups where multiple speakers need to be powered by a single amplifier.

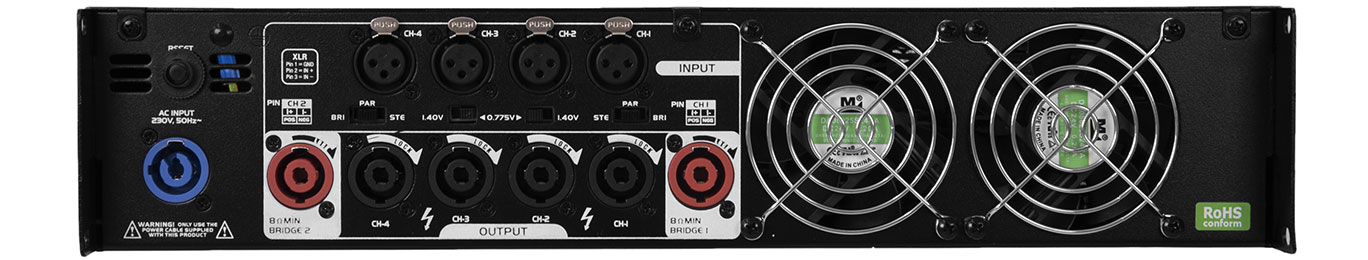

Balanced XLR inputs and XLR link outputs make integration into the signal chain easier. The input sensitivity is switchable, and the speaker outputs feature locking speaker connectors.
