PSSO PXS Series | Steinigke Onlineshop

Wireless freedom redefined

The PXS wireless system series from PSSO combines powerful technology, reliable signal transmission and flexible application options. With high-quality true diversity receivers, powerful microphones and extremely compact bodypack transmitters, the series offers everything professionals need for interference-free operation.

For one or two channels

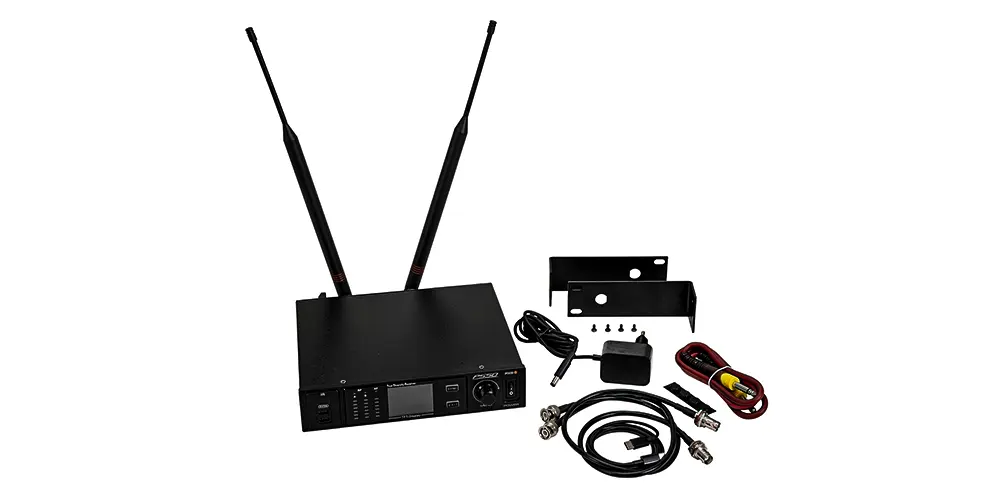

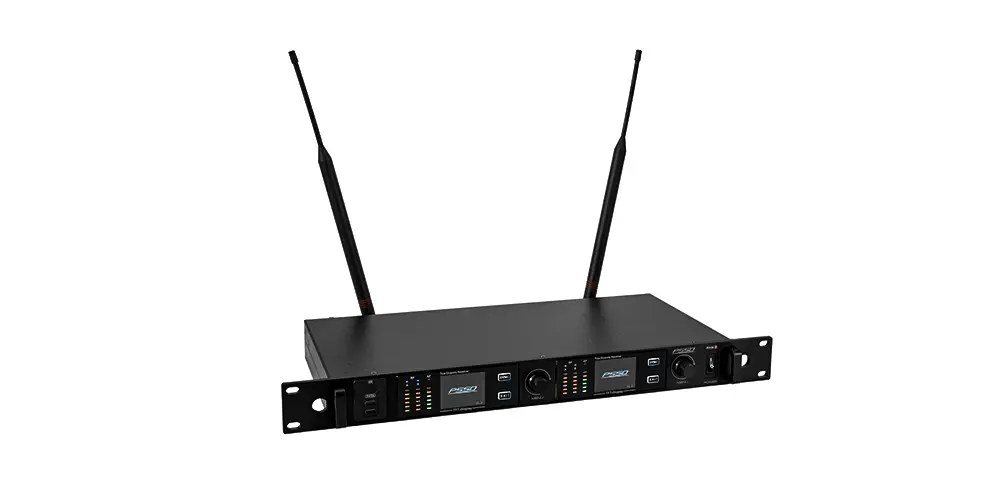

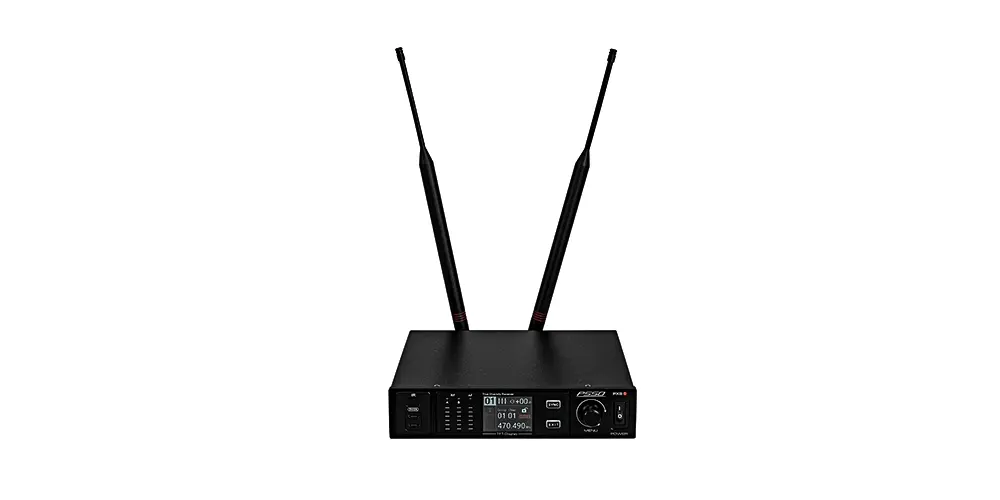

The PXS ONE receivers are available as single-channel true diversity models in the frequency ranges 470-490 MHz, 490-510 MHz, 640-665 MHz and 665-690 MHz. They use the latest UHF wireless transmission technology, which not only ensures clear sound but also enables an extremely long range of up to 200 metres. Those who want to use two channels simultaneously can choose the PXS TWO receivers. They enable simultaneous reception on two channels and offer all the functions of the PXS ONE, including true diversity for a stable wireless connection.

Automatic frequency setup and spectrum analysis

The automatic frequency setup saves time and is convenient to use, making it considerably easier to find available frequencies. The spectrum analysis also displays frequencies within the selected spectrum that are already occupied or causing interference. Thanks to the infrared interface, transmitters and receivers can be synchronised quickly and reliably.

Additional convenient features

A high-resolution TFT colour display ensures easy navigation and excellent readability on both models, even in challenging lighting conditions. The robust metal housings provide a high level of durability for both the receivers and the transmitters. Thanks to their compact design, the receivers can be installed in a 19-inch rack using just one rack unit.

Another special highlight of the PXS receivers is the integrated 3-channel equaliser. It allows interfering frequency ranges to be reduced or boosted directly on the receiver. This function provides optimised sound quality, particularly in simple setups without extensive mixing consoles.

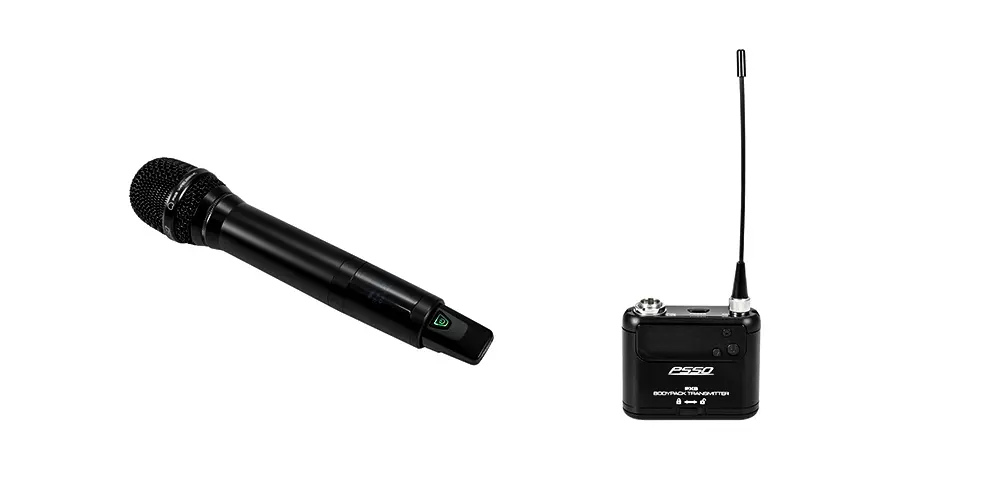

Handheld microphones and bodypack transmitters

The PXS wireless microphones and bodypack transmitters provide complete freedom of movement. The handheld microphones with a cardioid polar pattern ensure clear voice reproduction and can be used flexibly for a wide range of applications. The compact bodypack transmitters can be used with optional headset or lavalier microphones and are so lightweight that you will quickly forget you are wearing them.

Both the microphones and the bodypack transmitters can operate for up to ten hours and can be used with either lithium rechargeable batteries or AA batteries. Another practical feature is the option to charge the transmitters directly on the receiver. The display showing the current battery level provides additional convenience. Up to 54 transmitters can be operated simultaneously without interference.
